Zebra Pen Refill Chart: F-301, F-701, JK, 4C, X-701 and More

Zebra pen refills can be confusing because Zebra uses several different refill families across its ballpoint, gel, marker, and fountain pen-style products. A Zebra F-301, Zebra F-701, Zebra G-301, Zebra X-701, Zebra Sarasa, Zebra bLen, Zebra PM-701, and Zebra V-301 may all be Zebra pens, but they do not all use the same refill.

This Zebra pen refill chart is designed to help you compare common Zebra refill options by pen series, refill name, length, ink type, and compatibility notes. If you already have the old refill, the safest approach is to remove it and compare the actual refill shape before buying a replacement.

If you are comparing refill sizes across brands, start with the Pen Refill Finder or review refill terminology in Pen Refill Codes Explained.

Quick Answer: Which Zebra Refill Do I Need?

The refill you need depends on the Zebra pen model, which is why a Zebra pen refill chart is useful before buying replacements. Here are the most common starting points:

Zebra Pen / Series	Refill to Check First	Notes
Zebra F-301	Zebra F-Refill Ballpoint	Common compact F-series ballpoint refill
Zebra F-701	Zebra All Metal F-Refill Ballpoint	Often associated with the F-701; compare carefully with standard F-Refills
Zebra G-301	Zebra JK-Refill Gel	Gel refill family commonly associated with G-series gel pens
Zebra Compact, Telescopic or 4C-compatible pens	Zebra 4C-Refill Ballpoint	Small 67 mm ballpoint refill; compare your original refill before buying
Zebra X-701	Zebra X-701 K-Refill Ballpoint	K-Refill designed for the X-701
Zebra Sarasa Dry	Zebra LV-Refill Gel	111 mm gel refill
Zebra bLen Gel	Zebra NC-Refill Gel	111 mm gel refill
Zebra PM-701	Zebra PM-701 Marker Refill	Marker refill for PM-701
Zebra V-301	Zebra V-301 Fountain Pen Ink Cartridge	Cartridge for V-301 fountain pen-style models

Use this chart as a starting point, not a substitute for checking the refill in your actual pen. Zebra refill names can be model-specific, and similar-looking refills may not be interchangeable.

Zebra Pen Refill Chart

Refill	Approx. Length	Ink / Refill Type	Common Zebra Pens or Series	Notes
Zebra F-Refill Ballpoint	89 mm	Ballpoint	F-301, F-301 Compact, F-402, some F-series pens	Standard compact F-series refill family
Zebra All Metal F-Refill Ballpoint	95 mm	Ballpoint	F-701	Often treated separately from the standard 89 mm F-Refill
Zebra JK-Refill Gel	95 mm	Gel	G-301 and related Zebra gel pens	Compact gel refill family
Zebra 4C-Refill Ballpoint	67 mm	Ballpoint	Zebra Compact, Zebra Telescopic, or 4C-compatible pens	Small ballpoint refill; similar size class to D1, but not automatically interchangeable
Zebra X-701 K-Refill Ballpoint	98 mm	Ballpoint	X-701	K-Refill designed for the Zebra X-701
Zebra LV-Refill Gel	111 mm	Gel	Sarasa Dry and related gel pens	111 mm gel refill comparison group
Zebra NC-Refill Gel	111 mm	Gel	bLen Gel and related models	111 mm gel refill comparison group
Zebra PM-701 Marker Refill	125 mm	Marker	PM-701	Marker refill, not a ballpoint or gel refill
Zebra V-301 Fountain Pen Ink Cartridge	51 mm	Fountain pen ink cartridge	V-301	Cartridge-style ink supply, not a ballpoint or gel refill

The most important takeaway is that Zebra refills are not one universal family. A refill that fits one Zebra pen may not fit another Zebra pen, even when the pens have similar names.

Shop Common Zebra Pen Refills

If you know which refill your pen takes, start with the matching Zebra refill family.

Shop common Zebra pen refills:

• Zebra F-Refill Ballpoint: Black Fine, Blue Fine, Red Fine, 12-Pack Black Fine, Black Medium, Blue Medium, Black Super Bold
• Zebra All Metal F-Refill Ballpoint: Black
• Zebra JK-Refill Gel: Black Fine, Blue Fine, Red Fine, Black Medium, Blue Medium
• Zebra 4C-Refill Ballpoint: Black, Blue, Red, Green, 3-Pack Black/Red/Blue
• Zebra X-701 K-Refill Ballpoint: Black Fine Point
• Zebra LV-Refill Gel: Black, Blue, Red
• Zebra NC-Refill Gel: Black
• Zebra PM-701 Marker Refill: Black
• Zebra V-301 Fountain Pen Ink Cartridges: 2-Pack Black, 10-Pack Black

If you are not sure which refill you need, remove the old refill and compare it before buying multiples.

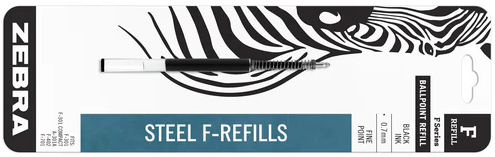

Zebra F-301 Refills

The Zebra F-301 is one of Zebra’s best-known compact stainless steel ballpoint pens. It commonly uses the Zebra F-Refill Ballpoint, an 89 mm compact ballpoint refill.

The F-301 refill family is where many Zebra refill questions begin because several F-series pens use similar-looking refills. Depending on the packaging, you may see references to F-301, F-301 Compact, F-402, and other related models.

If you are replacing a Zebra F-301 refill, compare the old refill against the 89 mm Zebra F-Refill Ballpoint first.

For full specs, compatibility notes, and buying options, see the Zebra F-Refill Ballpoint page.

For a deeper explanation of Zebra F-series refill confusion, see our Zebra F-Refills Explained: F-301, F-701, Steel vs Premium guide.

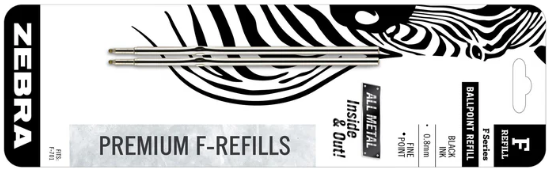

Zebra F-701 Refills

The Zebra F-701 can be especially confusing because it is closely associated with the F-series, but it is often discussed separately from the standard 89 mm F-Refill.

For the F-701, check the Zebra All Metal F-Refill Ballpoint, which is listed here as a 95 mm ballpoint refill. Do not assume that every refill labeled as an F-Refill is automatically the right replacement for every version of the F-701.

The safest approach is to compare the refill that came out of your pen with the replacement refill before buying.

For full specs, compatibility notes, and buying options, see the Zebra All Metal F-Refill Ballpoint page.

Zebra F-301 vs F-701 Refills

The Zebra F-301 and Zebra F-701 are often discussed together, but their refill situation is not always identical.

Pen	Common Refill	Approx. Length	Notes
Zebra F-301	Zebra F-Refill Ballpoint	89 mm	Common compact F-series ballpoint refill
Zebra F-701	Zebra All Metal F-Refill Ballpoint	95 mm	Often associated with the F-701 and treated separately

This is one of the most important parts of Zebra refill compatibility. Similar names do not guarantee identical refills.

For the detailed version, use the dedicated Zebra F-Refills Explained guide.

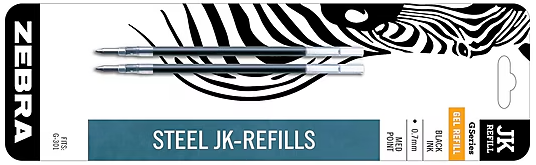

Zebra JK-Refill Gel

The Zebra JK-Refill Gel is a 95 mm gel refill commonly associated with Zebra gel pens such as the G-301 family.

This refill is different from the Zebra F-Refill ballpoint family. Even if a Zebra gel pen and Zebra ballpoint pen look similar on the outside, the refill inside may be completely different.

Use the JK-Refill when your pen specifically takes the Zebra JK gel refill family.

For full specs, compatibility notes, and buying options, see the Zebra JK-Refill Gel page.

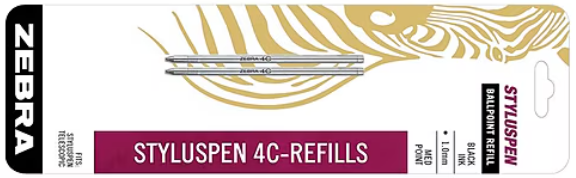

Zebra 4C-Refill Ballpoint

The Zebra 4C-Refill Ballpoint is a small 67 mm ballpoint refill used in select Zebra Compact, Zebra Telescopic, or 4C-compatible pens.

Because it is a small refill, it may be compared with other compact refill formats such as D1. However, similar size class does not mean automatic compatibility. A 4C refill and a D1 refill can be close in length while still having different shapes, diameters, tips, or rear sections.

If your Zebra pen uses a 4C refill, buy the refill specifically identified as the Zebra 4C-Refill Ballpoint or compare your old refill carefully before experimenting.

For full specs, compatibility notes, and buying options, see the Zebra 4C-Refill Ballpoint page.

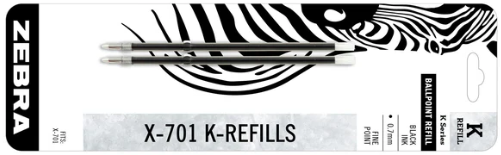

Zebra X-701 K-Refill Ballpoint

The Zebra X-701 uses the Zebra X-701 K-Refill Ballpoint. The refill may be listed simply as a K-Refill, but “X-701 K-Refill” is clearer because the refill is designed for the X-701.

Do not treat the K-Refill as a general Zebra ballpoint refill. It belongs in the X-701 compatibility conversation, not the standard F-301 or F-701 refill family.

For full specs, compatibility notes, and buying options, see the Zebra X-701 K-Refill Ballpoint page.

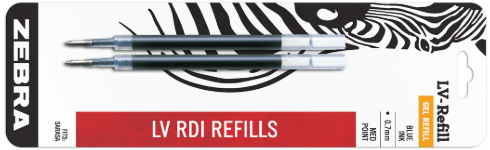

Zebra LV-Refill Gel

The Zebra LV-Refill Gel is a 111 mm gel refill associated with Sarasa Dry-style refill compatibility.

Because it is in the 111 mm refill group, it may be compared with other 111 mm gel refills such as Pilot G2, Pentel EnerGel, TUL Gel, Uniball 207, and Zebra NC. But similar length does not guarantee universal fit.

For full specs, compatibility notes, and buying options, see the Zebra LV-Refill Gel page.

For broader size comparisons, see the 111 mm Pen Refills Guide.

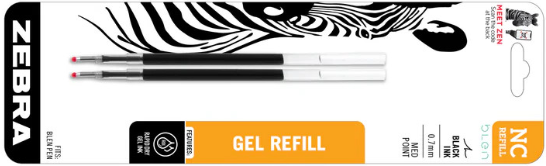

Zebra NC-Refill Gel

The Zebra NC-Refill Gel is another 111 mm gel refill, commonly associated with Zebra bLen gel refill compatibility.

Like the LV-Refill, the NC-Refill belongs in the 111 mm gel refill conversation, but it should still be matched to the correct Zebra pen. Tip shape, spring position, and rear section can all affect fit.

For full specs, compatibility notes, and buying options, see the Zebra NC-Refill Gel page.

If you are comparing similar refill sizes, use the Pen Refill Finder before buying.

Zebra Sarasa, LV, NC, and JF Refill Naming

Zebra Sarasa refill naming can vary by market, which can make online research confusing.

In the U.S., you are more likely to see refill names such as LV-Refill, NC-Refill, JK-Refill, or specific Sarasa-related replacement refills. The JF refill is commonly associated with Sarasa models in some markets and references, but it may not be as easy to find as a standard U.S. Zebra refill listing.

For a U.S.-focused Zebra refill chart, it is safer to identify the refill by the specific replacement product available for your pen rather than assuming every Sarasa-style refill uses the same naming.

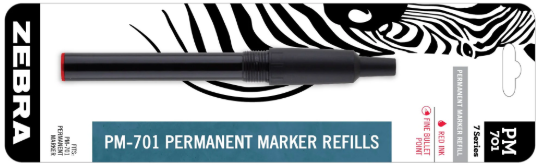

Zebra PM-701 Marker Refill

The Zebra PM-701 Marker Refill is a 125 mm marker refill made for the Zebra PM-701.

This is not a ballpoint refill, gel refill, or rollerball refill. It belongs to a different refill category, so it should not be compared directly with Zebra F-Refills, JK refills, LV refills, or NC refills.

If you have a PM-701, buy the marker refill made for that model.

For full specs, compatibility notes, and buying options, see the Zebra PM-701 Marker Refill page.

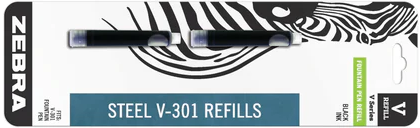

Zebra V-301 Fountain Pen Ink Cartridge

The Zebra V-301 Fountain Pen Ink Cartridge is a 51 mm cartridge used in Zebra V-301 fountain pen-style models.

This is a cartridge, not a ballpoint or gel refill. Fountain pen cartridges work differently because the nib and feed stay with the pen while the cartridge supplies ink.

For full specs, compatibility notes, and buying options, see the Zebra V-301 Fountain Pen Ink Cartridge page.

For a beginner-friendly explanation of refill and cartridge types, see Pen Refills 101.

Can Zebra Pens Use Standard Refills?

Sometimes, but do not assume so.

Some Zebra refills belong to common size groups, such as 111 mm gel refills or compact refill formats. Others are more model-specific, such as the Zebra X-701 K-Refill, PM-701 marker refill, or V-301 ink cartridge.

When checking whether a non-Zebra refill might fit, compare:

• Overall length
• Tip shape
• Tip diameter
• Shoulder shape
• Spring position
• Barrel diameter
• Rear plug or back-end shape
• Whether the pen retracts and extends correctly

Length is useful, but it is not enough by itself.

How to Identify a Zebra Pen Refill

If you are not sure which Zebra refill you need, use this Zebra pen refill chart as a starting point, then remove the old refill and inspect it.

Check:

1. Pen model
   Look for the model name on the barrel, clip, packaging, or old listing.
2. Refill name or code
   Zebra refill names like F-Refill, All Metal F-Refill, JK, 4C, K, LV, NC, PM-701, and V-301 are not interchangeable.
3. Length
   Measure from the writing tip to the back end of the refill.
4. Ink type
   Ballpoint, gel, marker, and fountain pen cartridges are different categories.
5. Tip and shoulder shape
   The front of the refill has to fit the pen nose and spring correctly.
6. Rear plug
   The back end may affect the click mechanism.
7. Mechanism behavior
   A refill must extend, retract, and seat properly inside the pen.

If you are still unsure, compare refill shapes in the Pen Refill Finder.

Common Zebra Refill Mistakes

The most common mistake is assuming that all Zebra refills fit all Zebra pens.

Other common mistakes include:

• Buying an F-301 refill for an F-701 without checking the old refill
• Assuming the Zebra All Metal F-Refill Ballpoint is the same as the 89 mm F-Refill
• Treating the X-701 K-Refill as a general Zebra refill
• Confusing JK, LV, and NC gel refill families
• Assuming every Sarasa refill uses the same U.S. refill name
• Assuming 4C and D1 refills are interchangeable because they are both small
• Buying a gel refill for a ballpoint pen
• Buying a marker refill for a pen
• Comparing length but ignoring tip and spring position
• Assuming cartridges work like ballpoint or gel refills

If you want the safest replacement, start with the refill specifically made for your Zebra pen model.

Zebra Pen Refill Chart: FAQs

What is the Zebra pen refill chart for?

This Zebra pen refill chart helps compare common Zebra refill families by pen model, refill name, length, ink type, and compatibility notes. It is meant to help you narrow down the right refill before checking the full refill page or comparing your old refill.

Are Zebra pen refills universal?

No. Zebra pen refills are not universal. Different Zebra pens use different refill families, including F-Refill, All Metal F-Refill, JK, 4C, K, LV, NC, PM-701, and V-301 cartridge formats.

What refill does the Zebra F-301 use?

The Zebra F-301 commonly uses the Zebra F-Refill Ballpoint, an 89 mm compact ballpoint refill.

What refill does the Zebra F-701 use?

The Zebra F-701 is commonly associated with the Zebra All Metal F-Refill Ballpoint, listed here as a 95 mm ballpoint refill. Compare your old refill before buying because F-series refill naming can be confusing.

Are Zebra F-301 and F-701 refills the same?

Not always. The F-301 is commonly associated with the 89 mm Zebra F-Refill Ballpoint, while the F-701 is commonly associated with the 95 mm Zebra All Metal F-Refill Ballpoint. Check your old refill before assuming they are interchangeable.

What is the Zebra JK-Refill?

The Zebra JK-Refill Gel is a 95 mm gel refill used in compatible Zebra gel pens, including models in the G-301 family.

What is the Zebra 4C-Refill?

The Zebra 4C-Refill Ballpoint is a small 67 mm ballpoint refill used in select Zebra compact or 4C-compatible pens. It should not be assumed to fit every small refill pen.

Is a Zebra 4C refill the same as a D1 refill?

Not necessarily. Zebra 4C and D1 refills are both small refill formats, but similar length or size class does not guarantee compatibility. Compare the tip, diameter, rear section, and full refill shape before substituting one for the other.

What refill does the Zebra X-701 use?

The Zebra X-701 uses the Zebra X-701 K-Refill Ballpoint. It may be listed as a K-Refill, but it is best treated as an X-701-specific refill.

What is the difference between Zebra LV and NC refills?

Both the Zebra LV-Refill Gel and Zebra NC-Refill Gel are 111 mm gel refills, but they are associated with different Zebra pen families. Match the refill to the specific pen model.

Can I use Pilot G2 or EnerGel refills in Zebra pens?

Sometimes Zebra refills share a general size group with refills like Pilot G2 or Pentel EnerGel, especially in the 111 mm gel refill category. But similar length does not guarantee fit, so compare the full refill shape before trying a non-Zebra refill.

Does the Zebra V-301 use a normal pen refill?

No. The Zebra V-301 uses a fountain pen-style ink cartridge, not a standard ballpoint or gel refill.

Where can I compare Zebra refills by size?

Use the Pen Refill Finder or the 111 mm Pen Refills Guide for size-based comparisons.

Zebra Pen Refill Chart: Final Takeaway

The right Zebra refill depends on the specific pen model, which is why a Zebra pen refill chart is helpful for comparing refill families before buying. Zebra F-301, F-701, G-301, 4C-compatible pens, X-701, Sarasa, bLen, PM-701, and V-301 pens can use very different refill families.

Start with the model name, then match the correct refill family. If you are unsure, remove the old refill and compare the length, tip, shoulder, spring position, rear plug, and ink type before buying a replacement.

---
